CABUR XCSL240C | POWER SUPPLY, SINGLE PHASE, 120-230 VAC, 24 VDC, 10 AMPS
Category: Cabur S.r.l.
Specifications
Weighing
TECHNICAL DATA
Input voltage (Vac) 90 - 264 Vac
Output voltage (V) 24 Vdc
Output current (A) 10
Overload limiting current (A) 14 A for >30 s with Uout > 90% Un
Short-circuit peak current >24 A for 400 ms
Yield >87% / >90%
Assembly vertical on rail, allow 10 mm spacing between adjacent components
SKU
XCSL240C
Details

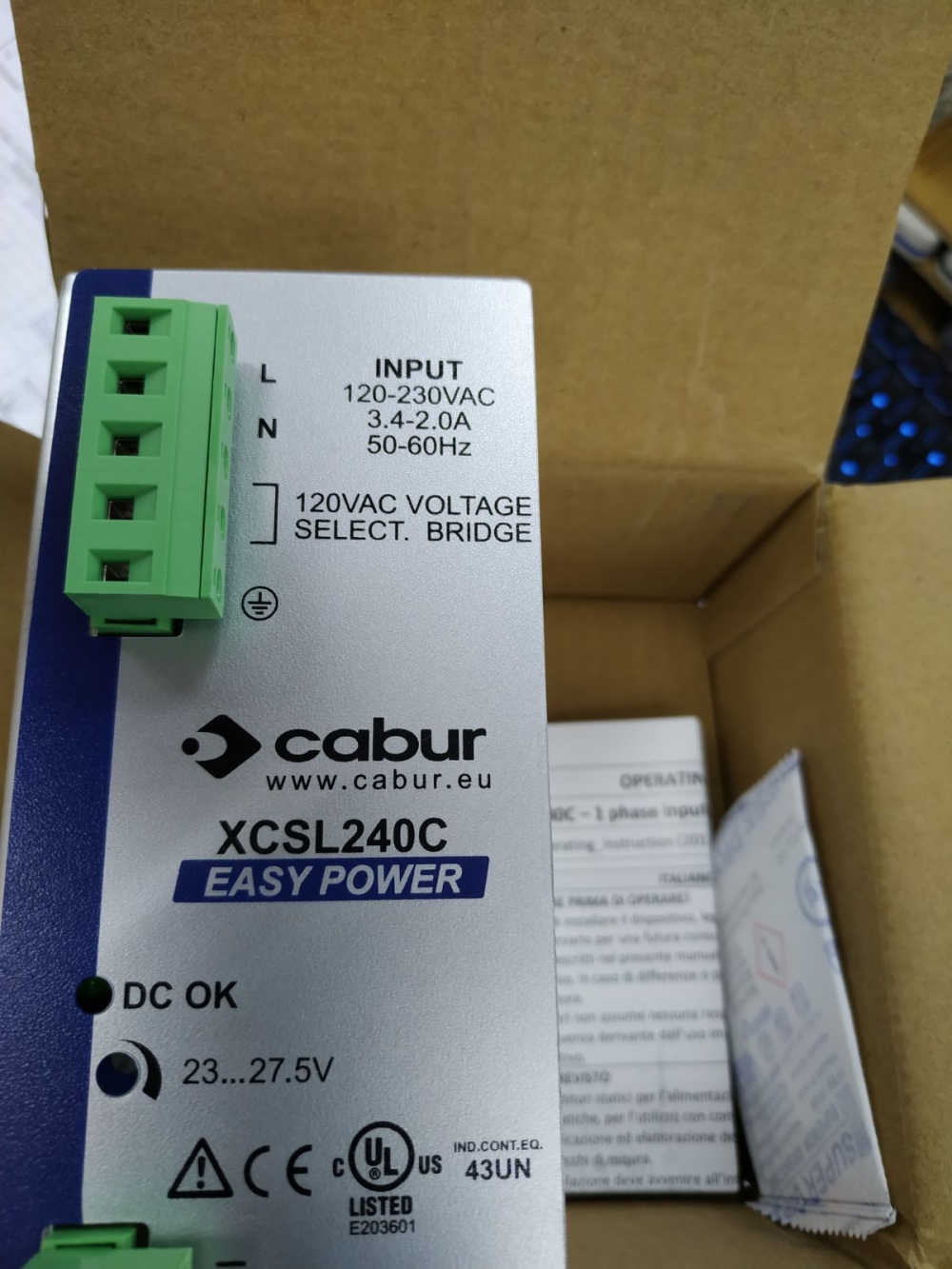

The Cabur XCSL240C (also known as the CSL240C) is a single-phase DIN-rail switching power supply designed for standard industrial automation and process control applications. Part of Cabur's Easy Power series, it offers a balanced price-to-performance ratio, high energy efficiency, and a compact design suited for tight control panels.
Technical Specifications
- Input Voltage: 120–230 Vac nominal (operational range spanning 90–264 Vac).
- Output Voltage: 24 Vdc (adjustable).
- Output Current: 10 A.
- Power Rating: 240 W.
- Overload Limit: 14 A for more than 30 seconds.
- Peak Short-Circuit Current: Greater than 24 A for 400 milliseconds.
- Efficiency: Greater than 87% to 90% depending on the load.
- Mounting Type: Vertical installation on a standard DIN rail.
Key Features
- High Efficiency & Compact Profile: Its minimized footprint allows for high power density and reduced heat generation inside panels.
- Robust Load Handling: Built with an overload reserve to successfully handle temporary inrush currents from heavy inductive loads.
- Protective Features: Includes integrated short-circuit, overvoltage, and thermal overload protection to protect connected equipment.
