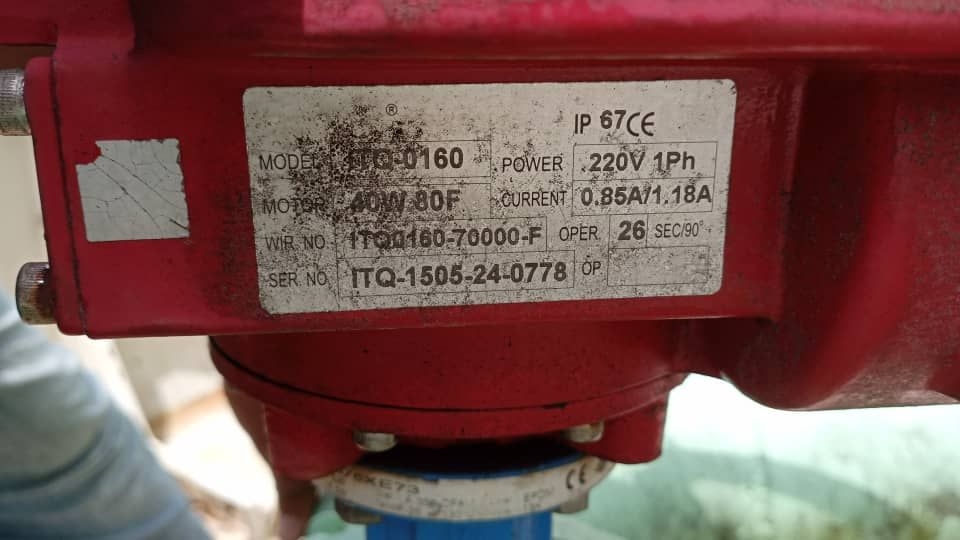

I-Tork ITQ0160-70570-F Electric Actuator
Category: Electric Actuator | I-TORK (Korea)
Specifications
SKU
ITQ0160-70570-F
Details
The I-Tork ITQ0160-70570-F Electric Actuator is a heavy-duty, high-performance quarter-turn industrial valve actuator manufactured by I-TORK Controls. It is primarily engineered to automate quarter-turn valves like ball valves, butterfly valves, and industrial dampers.
Key Specifications & Performance
- Output Torque: Delivers a robust 100 Nm of force.
- Electrical Demands: Configured for single-phase 120V AC operation.
- Amperage Draw: Draws approximately 1.10 to 1.49 Amps.
- Physical Weight: Weighs roughly 7.26 kgs.
- Mounting Interface: Built according to standard ISO5211 flange specifications.
Standard Mechanical & Structural Features
- Heavy-Duty Casing: Features hard-anodized aluminum casting with external epoxy powder coating.
- IP67 Weatherproof Rating: Sealed comprehensively using high-grade radial O-rings.
- Self-Locking Gear Train: Employs double worm gearing to prevent back-driving.
- Advanced Motor Design: Powered by a high-starting-torque Class F induction motor.
- Emergency Manual Override: Includes an auto/manual switchable clutch lever with a handwheel.
- Safety & Feedback: Comes standard with internal anti-condensation space heaters.
What specific information do you need regarding this actuator? If you tell us:
- Are you troubleshooting an existing unit or looking for a new replacement?
- Do you need assistance reviewing the wiring diagram or switch settings?
- Are you verifying its compatibility with a specific valve size/type?
