Schneider Electric Acti9 Plug-In Base for use with ISW-NA, Reflex iC60, RCA, ISW, ILD, IDPN Vigi, IC60, ARA
Specifications
Weighing
Allows a breaker to be removed or replaced quickly, without handling the connections
Can be installed in universal enclosure or on horizontal rail
Can be locked by a padlock, not supplied with the device
Compatible with Acti9 devices such as iC60, iID, iC40, iSW-NA, Reflex iC60, RCA, ARA, and iSW
Options
This Acti9 accessory is a plug in base for modular products. This accessory is compatible the Acti9 products like Acti9 iC60, Acti9 iID, Acti9 iSW and Acti9 iSW-NA. It is dedicated for 1 pole. The dimensions are (W) 19mm x (H) 177mm x (D) 70mm.
SKU
A9A27003
Details

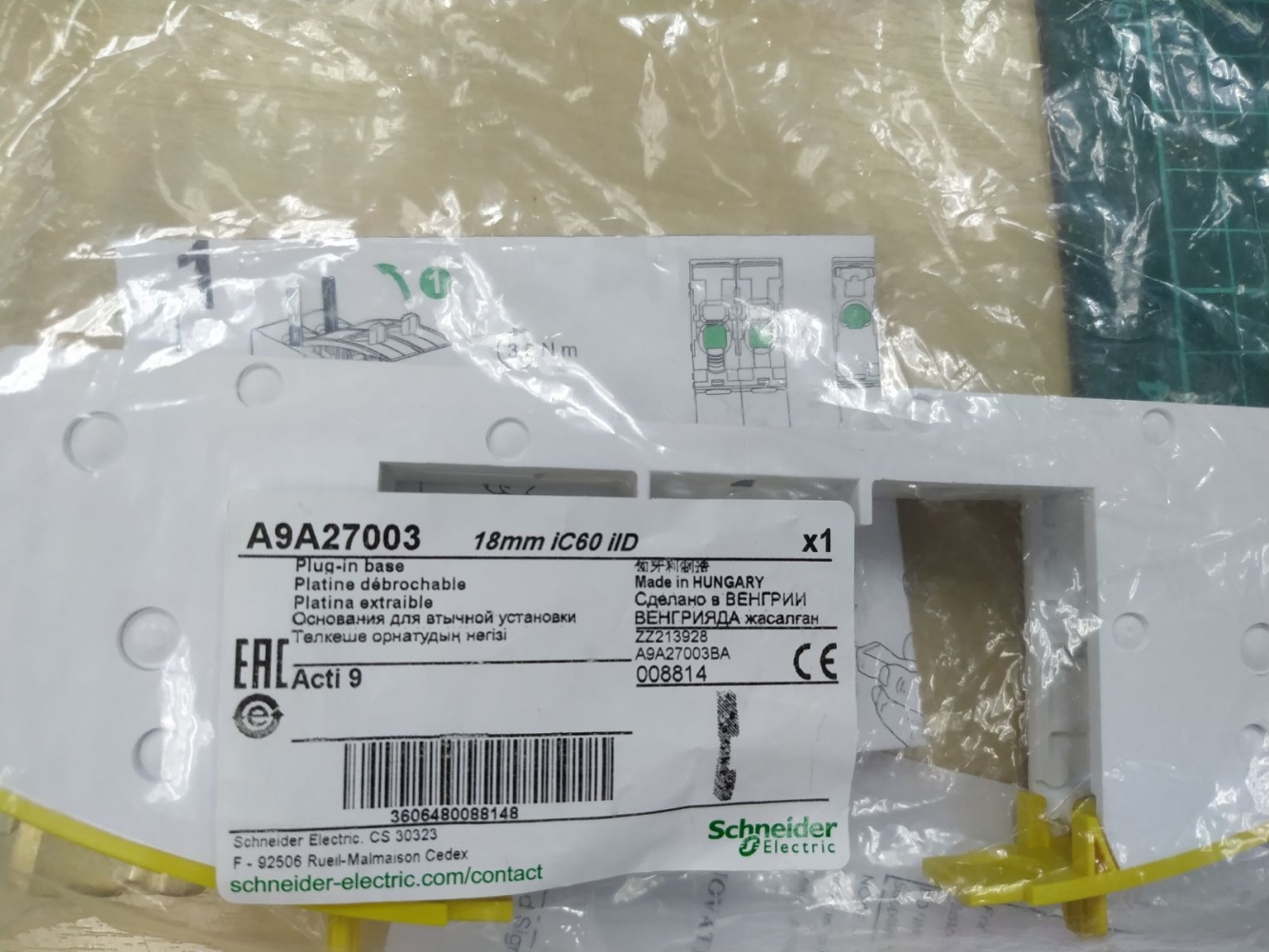

The Schneider Electric A9A27003 is a 1-pole (1P), 18mm modular plug-in base designed for the Acti9 range of circuit breakers. It allows low-voltage protective devices to be quickly removed or replaced without handling the permanent electrical wiring connections.
Key Technical Specifications
- Pole Description: 1P (Single Pole)
- Module Width: 18 mm (Physical width is 19 mm)
- Mounting Mode: Clip-on DIN rail / universal enclosure mounting
- Ingress Protection: IP20 degree of protection
- Color: White
- Dimensions: 177 mm (Height) x 19 mm (Width) x 70 mm (Depth)
Compatibility
According to official product documentation from Schneider Electric, this installation accessory is compatible with the following Acti9 series components:
- Miniature Circuit Breakers (MCBs): iC60, iC40
- Residual Current Devices (RCDs): iID, iID K
- Switch-Disconnectors: iSW (40A to 125A), iSW-NA
- Control Units & Auxiliaries: Reflex iC60, RCA remote controls, ARA automatic reclosers
Key Benefits
- Rapid Maintenance: Speeds up device replacement during maintenance downtime.
- Safety: Allows isolation of circuit breakers without direct contact with the live distribution busbar or cables.
- Security: Features padlock compatibility (padlock not included) to securely lock out the slot during circuit servicing.
If you are trying to source this component, you can check real-time stock availability or order through official component distributors such as GEASB.
Are you looking for pricing and availability in a specific country, or do you need a wiring diagram/installation guide for this accessory?
